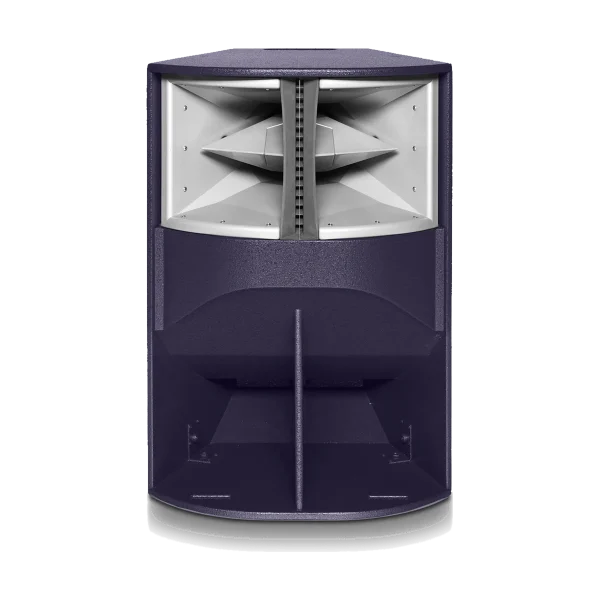

Funktion-One EX

EX

Evolution X three way loudspeaker - 15", 8" & 1", 90°H x 15°V, triamped

Operating band LF: 35/85Hz – 280Hz
Sensitivity at 1 m LF: 102dB at 2.8V
Power (AES) LF: 400W
Weight: 47kg (103lbs) without wheelboard

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Driver LF: 15"
Operating band LF: 35/85Hz – 280Hz
Sensitivity at 1 m LF: 102dB at 2.8V
Power (AES) LF: 400W
Nominal impedance LF: 8Ω
Driver MF: 8"
Operating band MF: 280Hz – 5kHz
Sensitivity at 1 m MF: 107dB at 4V
Power (AES) MF: 200W
Nominal impedance MF: 16Ω
Driver HF: 1"
Operating band HF: 5kHz – 18kHz
Sensitivity at 1 m HF: 109dB at 4V
Power (AES) HF: 100W
Nominal impedance HF: 16Ω
Usable bandwidth (−3 dB): 60Hz – 18kHz
Weight: 47kg (103lbs) without wheelboard
Nominal dispersion: 90° Horizontal × 13° Vertical
Connectors: 2 × Neutrik NL8
Amplification: 3-way active (triamp)

Planning a system?

369AV represents Funktion-One in Greece and Cyprus. Send the models and quantities you need and we will reply with a quote within 24 hours.

Request a quote Log in for trade pricing

Call (+30) 2103412369
