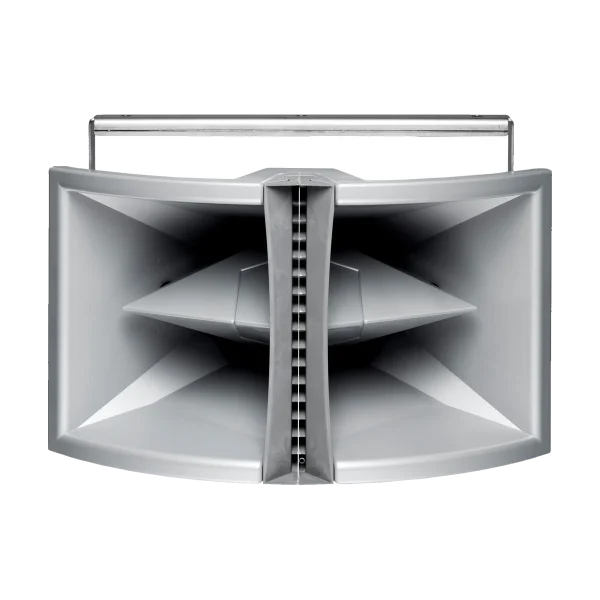

Funktion-One EXSH

EXSH

Evolution X two way skeletal loudspeaker - 8" & 1", 90°H x 15°V, biamped

Operating band MF: 280Hz – 5kHz
Sensitivity at 1 m MF: 107dB at 4V
Power (AES) MF: 200W
Weight: 13.5kg (30lbs) (including yoke)

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Driver MF: 8"
Operating band MF: 280Hz – 5kHz
Sensitivity at 1 m MF: 107dB at 4V
Power (AES) MF: 200W
Nominal impedance MF: 16Ω
Driver HF: 1"
Operating band HF: 5kHz – 18kHz
Sensitivity at 1 m HF: 109dB at 4V
Power (AES) HF: 100W
Nominal impedance HF: 16Ω
Usable bandwidth (−3 dB): 280Hz – 18kHz
Weight: 13.5kg (30lbs) (including yoke)
Nominal dispersion: 90° Horizontal × 13° Vertical
Connectors: 2 × Neutrik NL4
Amplification: 2-way active (biamped)
