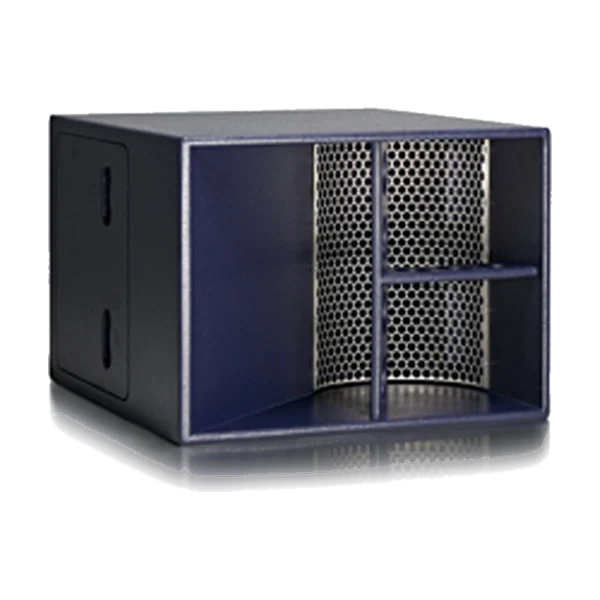

Funktion-One F118

F118

MkII horn loaded bass loudspeaker - 1 × 18"

Operating band LF: 25Hz – 200Hz
Sensitivity at 1 m LF: 102dB at 2.8V
Power (AES) LF: 450W
Weight: 50kg (110lbs)

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Data sheet (PDF)

Specifications

Driver LF: 18"
Operating band LF: 25Hz – 200Hz
Sensitivity at 1 m LF: 102dB at 2.8V
Power (AES) LF: 450W
Nominal impedance LF: 8Ω
Usable bandwidth (−3 dB): 50 – 200Hz
Weight: 50kg (110lbs)
Nominal dispersion: Array dependent
Connectors: 2 x Neutrik NL4
