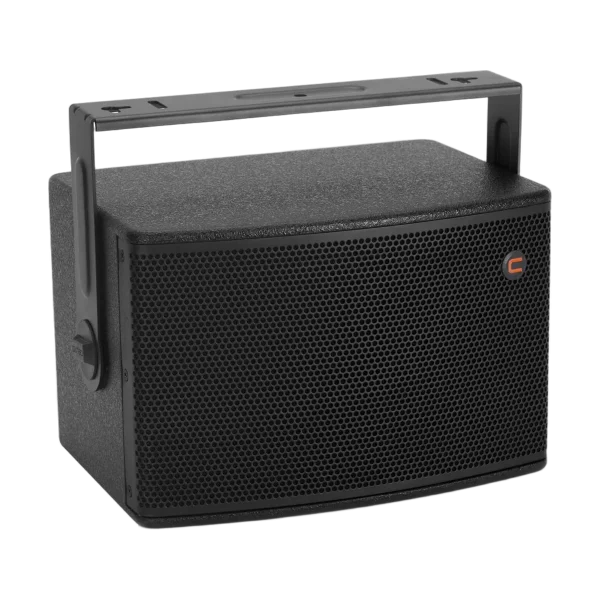

iFIX10 FR

FIX Install Full Range Coaxial Speaker

Frequency response (−6 dB no preset): 68~22000 Hz
Maximum SPL (calculated): 122 dB RMS / 128 dB Peak
Speaker Weight: 14.5 kg
Nominal directivity (−6 dB): 80° conical

Your choices are added to the quote request.

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Read the full overview

Big sound in a remarkably compact package—the CELTO iFIX10 FR delivers a genuine 300 W RMS with audiophile-grade clarity and impact. This high-output coaxial loudspeaker is engineered for near-field main PA reinforcement, paired with a subwoofer for an extra low extension. Ideal for trendy nightclubs, multifunctional venues, pubs, restaurants, auditoriums, theatres, and foreground music applications. Featuring a next-generation 10" coaxial driver with HSP annular ring radiator HF for extraordinary efficiency and tonal precision. Audiophile crossover with Right-Phase topology ensures flawless phase coherence and immersive spatial imaging. Crafted from premium birch plywood, available in black, white, natural oak, or custom RAL finishes for seamless integration. Multi-function yoke with dented ring included for precise and secure mounting angles. With 97 dB sensitivity and a staggering 128 dB peak SPL, it defies its size with effortless authority. The iFIX10 FR proves that true high-fidelity power can thrive in discreet, elegant installations without always needing a subwoofer.

Specifications

Speaker type: FIX Install Full Range Coaxial Speaker
Power Handling (AES standard): 300 W RMS / 1200 W Peak
Nominal impedance: 8 Ω
Average sensitivity: 97 dB / 1 W / 1 m
Maximum SPL (calculated): 122 dB RMS / 128 dB Peak
Frequency response (−6 dB no preset): 68~22000 Hz
Nominal directivity (−6 dB): 80° conical
Cabinet: Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish: Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use: No
Flying hardware: Multi-function Yoke (can be mounted with screws or Eyebolt, Included in carton)
Mounting hardware: Yes for Yoke, wall mount bracket and CCA-MA
LF: 10" coaxial CELTO 10CXF310
Woofer Chassis: Die Cast Aluminium
Woofer Voice coil: 2.5" / 65 mm
HF: CELTO ACD40 (in coaxial mounting)
HF RMS power (AES standard): 80 W above 1.5 kHz
HF Exit: 1" / 25 mm
HF Voice coil diameter: 1.7" / 44 mm
HF Diaphragm: HSP Annular (High Strength Polymer)
Crossover: 1.5 kHz 2-way passive network
Connectivity: PHOENIX MSTBV 2.5/4-GF-5.08 4pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD): 316 x 440 x 298 mm
Speaker Weight: 14.5 kg
Shipping information: 19 kg 510 x 410 x 360 mm
Accessories: CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Alumininum grill
