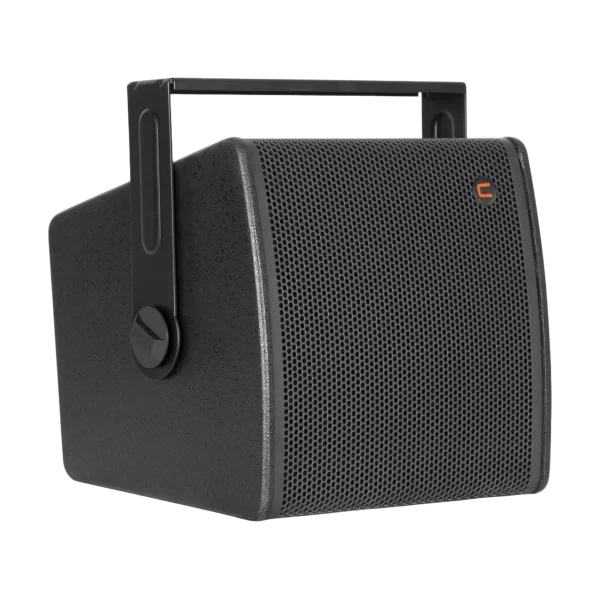

iFIX10 G2

FIX Install Full Range Coaxial Speaker

Frequency response (−6 dB no preset): 95~22000 Hz
Maximum SPL (calculated): 122 dB RMS / 128 dB Peak
Speaker Weight: 12 kg
Nominal directivity (−6 dB): 80° conical

Your choices are added to the quote request.

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Big sound in an astonishingly small package—the CELTO iFIX10 G2 packs a serious 300W RMS for uncompromising performance. This high-output coaxial loudspeaker excels in near-field PA applications when combined with a dedicated subwoofer. Perfect for high-energy venues including nightclubs, bars, restaurants, theatres, auditoriums, and foreground music systems. Next-generation 10" coaxial driver with HSP annular ring radiator HF delivers extraordinary efficiency and tonal accuracy. Audiophile crossover with Right-Phase topology provides flawless phase coherence and wide, even coverage. Premium birch plywood construction available in black, white, natural, or custom RAL finishes for discreet integration. Supplied with multi-function yoke for precise, secure installation angles. Achieving 97 dB sensitivity and a staggering 128 dB peak SPL, it redefines expectations for compact installations. When you need authoritative sound without dominating the room visually, the iFIX10 G2 is the sophisticated choice.

Specifications

Speaker type: FIX Install Full Range Coaxial Speaker
Power Handling (AES standard): 300 W RMS / 1200 W Peak
Nominal impedance: 8 Ω
Average sensitivity: 97 dB / 1 W / 1 m
Maximum SPL (calculated): 122 dB RMS / 128 dB Peak
Frequency response (−6 dB no preset): 95~22000 Hz
Nominal directivity (−6 dB): 80° conical
Cabinet: Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish: Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use: No
Flying hardware: Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton)
Mounting hardware: Yes for Yoke, wall mount bracket and CCA-MA
LF: 10" coaxial CELTO 10CXF310
Woofer Chassis: Die Cast Aluminium
Woofer Voice coil: 2.5" / 65 mm
HF: CELTO ACD40 (in coaxial mounting)
HF RMS power (AES standard): 80 W above 1.5 kHz
HF Exit: 1" / 25 mm
HF Voice coil diameter: 1.7" / 44 mm
HF Diaphragm: HSP Annular (High Strength Polymer)
Crossover: 1.5 kHz 2-way passive network
Connectivity: PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD): 300 x 300 x 304 mm
Speaker Weight: 12 kg
Shipping information: 14 kg 410 x 380 x 440 mm
Accessories: CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Alumininum grill
