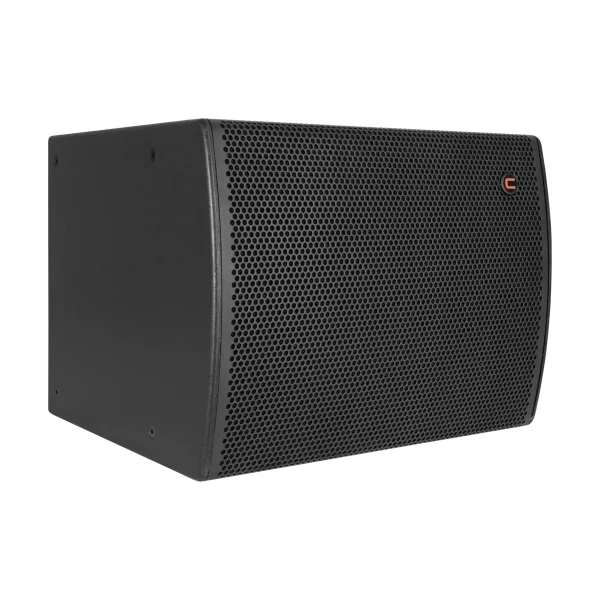

iFIX13S G2

Subwoofer

Frequency response (−6 dB no preset): 42~1500 Hz
Maximum SPL (calculated): 126 dB RMS / 132 dB Peak
Speaker Weight: 25 kg net
Nominal directivity (−6 dB): Omni in usable range

Your choices are added to the quote request.

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Compact yet commanding—the CELTO iFIX13S subwoofer delivers a genuine 800 W RMS of deep, accurate bass extension. Designed as the perfect low-frequency companion for the iFIX full-range series in permanent installations. Ideal for reinforcing main PA systems in nightclubs, multifunctional rooms, pubs, restaurants, theatres, and outdoor-capable setups. Its custom 15" woofer with trimmed chassis achieves remarkable output in an ultra-compact cabinet. High efficiency yields an impressive SPL-to-size ratio with tight, musical low-end down to 42 Hz. Six M8 flying points offer versatile rigging options for wall, ceiling, or stacked configurations. Built from 18 mm birch plywood and available in black, white, natural wood, or custom colors. Reaching 132 dB peak SPL with 97 dB sensitivity, it provides authoritative bass without overwhelming the space. The iFIX13S G2 proves that powerful low end can be both discreet and devastatingly effective.

Specifications

Speaker type: Subwoofer
Power Handling (AES standard): 800 W RMS / 3200 W Peak
Nominal impedance: 8 Ω
Average sensitivity: 97 dB / 1 W / 1 m
Maximum SPL (calculated): 126 dB RMS / 132 dB Peak
Frequency response (−6 dB no preset): 42~1500 Hz
Nominal directivity (−6 dB): Omni in usable range
Cabinet: Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish: Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use: No
Flying hardware: 8 M8 points
Mounting hardware: No
LF: 15" CELTO 15PF800-8
Woofer Chassis: Die Cast Aluminium
Woofer Voice coil: 3.6" / 91 mm
HF: N / A
HF RMS power (AES standard): N / A
HF Exit: N / A
HF Voice coil diameter: N / A
HF Diaphragm: N / A
Crossover: No, active mode only
Connectivity: PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD): 415 x 545 x 500 mm
Speaker Weight: 25 kg net
Shipping information: 30 kg 610 x 530 x 685 mm
Accessories: iFIXG2-BRKT (Installation brackets) Rust-Free Aluminium grill
