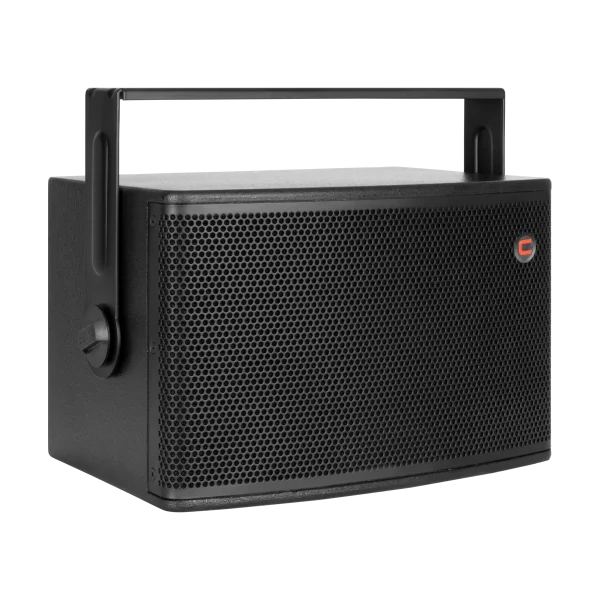

iFIX7 G2

FIX Install Full Range Coaxial Speaker

Frequency response (−6 dB no preset): 52~22000 Hz
Maximum SPL (calculated): 115 dB RMS / 121 dB Peak
Speaker Weight: 10 kg
Nominal directivity (−6 dB): 80° conical

Your choices are added to the quote request.

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Read the full overview

Don't let its elegant, compact form deceive you—the CELTO iFIX7 G2 unleashes a true 200 W RMS with audiophile-grade refinement. This full-range coaxial speaker delivers deep, warm bass and pristine highs, ideal for standalone use or paired with a subwoofer. Tailored for demanding installations in nightclubs, bars, restaurants, multifunctional spaces, theatres, and background music systems. Its advanced 8" coaxial transducer with PEI HF dome ensures unmatched spatial coherence and natural timbre. Audiophile crossover with Right-Phase topology guarantees perfect driver alignment and phase accuracy. Crafted from 15 mm birch plywood, available in black, white, natural oak, or custom finishes for aesthetic integration. Included multi-function yoke with dented ring allows precise, secure angling. Boasting 92 dB sensitivity and 121 dB peak SPL, it fills rooms with effortless authority. From subtle ambience to energetic foreground sound, the iFIX7 G2 proves that sophistication and power can coexist beautifully.

Specifications

Speaker type: FIX Install Full Range Coaxial Speaker
Power Handling (AES standard): 200 W RMS / 800 W Peak
Nominal impedance: 8 Ω
Average sensitivity: 92 dB / 1 W / 1 m
Maximum SPL (calculated): 115 dB RMS / 121 dB Peak
Frequency response (−6 dB no preset): 52~22000 Hz
Nominal directivity (−6 dB): 80° conical
Cabinet: Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish: Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use: No
Flying hardware: Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton)
Mounting hardware: Yes for Yoke, wall mount bracket and CCA-MA
LF: 8" coaxial CELTO 8CXF220B
Woofer Chassis: Die Cast Aluminium
Woofer Voice coil: 2" / 51 mm
HF: CELTO PCDN250 (in coaxial mounting)
HF RMS power (AES standard): 20 W above 1.5 kHz
HF Exit: 0.75" / 19 mm
HF Voice coil diameter: 1.1" / 28 mm
HF Diaphragm: C400 PEI dome
Crossover: 2.4 kHz 2-way passive network
Connectivity: PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD): 246 x 370 x 268 mm
Speaker Weight: 10 kg
Shipping information: 12 kg 390 x 330 x 510 mm
Accessories: CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Alumininum grill
