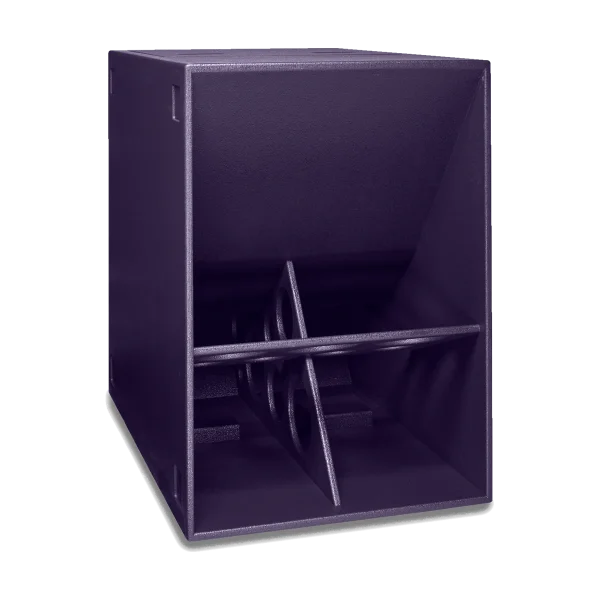

Funktion-One F124

F124

Horn loaded bass loudspeaker - 1 × 24" (dual input)

Operating Band: 20Hz – 85Hz
Sensitivity at 1 m: 104dB at 2V
Power (AES): 2 x 750W
Weight: 103kg (227lbs)

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Data sheet (PDF)

Specifications

Driver: 24" dual voice coil
Operating Band: 20Hz – 85Hz
Sensitivity at 1 m: 104dB at 2V
Power (AES): 2 x 750W
Nominal impedance: 2 x 8Ω
Usable bandwidth (−3 dB): 35Hz – 160Hz
Weight: 103kg (227lbs)
Nominal Dispersion: Array dependent
Connectors: 2 x Neutrik NL4
