iFIX17S G2

Subwoofer

Frequency response (−6 dB no preset): 38~1200 Hz
Maximum SPL (calculated): 129 dB RMS / 135 dB Peak
Speaker Weight: 32 kg net
Nominal directivity (−6 dB): Omni in usable range

Your choices are added to the quote request.

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

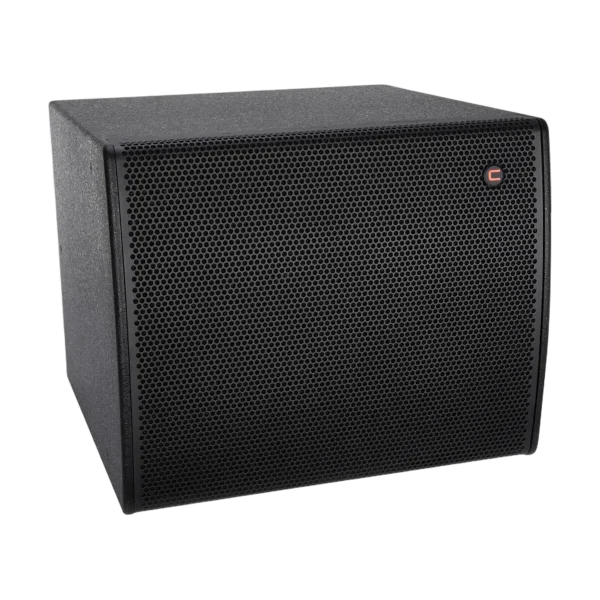

When serious bass authority is required without sacrificing space—the CELTO iFIX17S G2 delivers an imposing 1000 W RMS. This compact subwoofer extends low frequencies with precision and impact for the entire iFIX series. Suited to demanding indoor and outdoor applications in nightclubs, large multifunctional venues, theatres, and high-output foreground systems. Featuring a high-performance 18" driver with trimmed chassis for an amazingly small footprint relative to its power. Ultra-high 99 dB sensitivity and 135 dB peak SPL ensure room-shaking performance with minimal amplification. Six M8 rigging points enable flexible installation options including flying or ground stacking. Robust 18 mm birch plywood cabinet finished in black, white, natural oak, or any custom color. Extending down to 38 Hz with controlled, musical response throughout its range. The iFIX17S G2 demonstrates that true sub-bass power can indeed come in a surprisingly manageable package.

Specifications

Speaker type: Subwoofer
Power Handling (AES standard): 1000 W RMS / 4000 W Peak
Nominal impedance: 8 Ω
Average sensitivity: 99 dB / 1 W / 1 m
Maximum SPL (calculated): 129 dB RMS / 135 dB Peak
Frequency response (−6 dB no preset): 38~1200 Hz
Nominal directivity (−6 dB): Omni in usable range
Cabinet: Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish: Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use: No
Flying hardware: 8 M8 points
Mounting hardware: No
LF: 18" CELTO 18SW1000-8
Woofer Chassis: Die Cast Aluminium
Woofer Voice coil: 3.6" / 91 mm
HF: N / A
HF RMS power (AES standard): N / A
HF Exit: N / A
HF Voice coil diameter: N / A
HF Diaphragm: N / A
Crossover: No, active mode only
Connectivity: PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD): 482 x 596 x 600 mm
Speaker Weight: 32 kg net
Shipping information: 38 kg 710 x 600 x 730 mm
Accessories: iFIXG2-BRKT (Installation brackets) Rust-Free Aluminium grill
