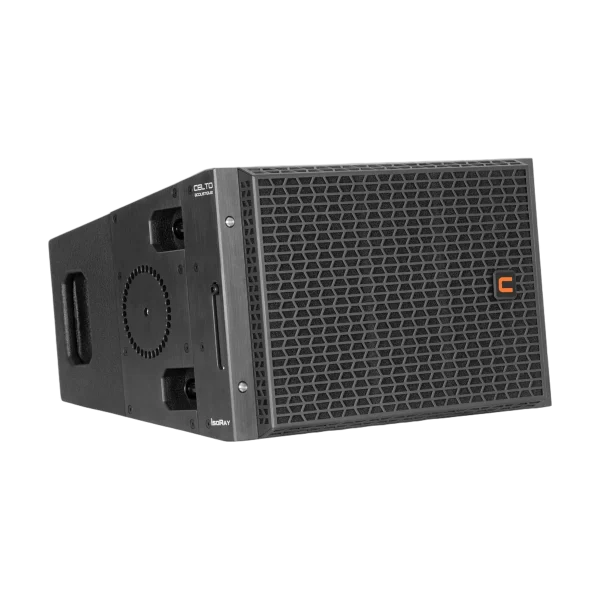

CELTO ISORAY10+

ISORAY10+

Coaxial Line source

Frequency response (−6 dB no preset)
95~22000 Hz
Maximum SPL (calculated)
130 dB RMS / 136 dB Peak above 1 kHz
Speaker Weight
15.5 kg
Nominal directivity (−6 dB)
100° (H), Vertical is array dependant
Request a quoteLog in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Game changer in a deceptively small package—the CELTO ISORAY10+ delivers a genuine 450 W RMS (1800 W peak) with unmatched size-to-SPL ratio in an ultra-compact, A3-sized cabinet weighing just 15.5 kg. This innovative coaxial line source loudspeaker is engineered for near- to far-field main PA reinforcement in array topology, always paired with a subwoofer for optimal results. Ideal for live shows, multifunctional rooms, auditoriums, theatres, sports centres, houses of worship, and demanding touring applications. At its heart, a premium 10" coaxial driver with neodymium magnet and patented IsoTop waveguide combines…

Read the full overview

Game changer in a deceptively small package—the CELTO ISORAY10+ delivers a genuine 450 W RMS (1800 W peak) with unmatched size-to-SPL ratio in an ultra-compact, A3-sized cabinet weighing just 15.5 kg. This innovative coaxial line source loudspeaker is engineered for near- to far-field main PA reinforcement in array topology, always paired with a subwoofer for optimal results. Ideal for live shows, multifunctional rooms, auditoriums, theatres, sports centres, houses of worship, and demanding touring applications. At its heart, a premium 10" coaxial driver with neodymium magnet and patented IsoTop waveguide combines seamless point-source coherence with true line array directivity (100° Horizontal & Array-dependent Vertical coverage). Advanced HSP annular ring HF radiator and passive crossover ensure pristine highs and flawless phase alignment across 95–22,000 Hz. Outdoor-grade Baltic birch plywood cabinet with rubberized PolyUrea finish and integrated cable-free rigging supports up to 24 elements with 12:1 safety factor. Boasting 98dB sensitivity and up to 136dB peak SPL, it achieves extraordinary throw and coverage from surprisingly few boxes. Genuine Neutrik SpeakON connectors with input switching and dedicated FIR + DynEQ presets optimize performance in any configuration. The ISORAY10+ proves that revolutionary line array power doesn't require massive cabinets—just brilliant engineering and a touch of audacity.

Specifications

Speaker type
Coaxial Line source
Power Handling (AES standard)
450 W RMS / 1800 W Peak
Nominal impedance
16 Ω
Average sensitivity
98 dB / 1 W / 1 m
Maximum SPL (calculated)
130 dB RMS / 136 dB Peak above 1 kHz
Frequency response (−6 dB no preset)
95~22000 Hz
Nominal directivity (−6 dB)
100° (H), Vertical is array dependant
Cabinet
Marine grade Baltic Birch Plywood Tongue & Groove construction
Cabinet finish
Touring Grade Rubberized PolyUrea Black coating Acoustic PU foam behind Front grill
Flying hardware
Fully integrated, cable-free, rigging 36 positions Aluminium Yoke plate
Mounting hardware
Foldable yoke and Ø35 mm adapter (optional)
LF
10" coaxial CELTO 10CXN400LA-16
Woofer Chassis
Die Cast Aluminium
Woofer Voice coil
3" / 75 mm
HF
CELTO ACDN44 loaded by IsoTop waveguide (in coaxial mounting)
HF RMS power (AES standard)
80 W above 1.2 kHz
HF Exit
1" / 25 mm
HF Voice coil diameter
1.7" / 44 mm Silver loaded wire
HF Diaphragm
HSP Annular (High Strength Polymer)
Crossover
1.1 kHz 2-way passive network
Connectivity
Genuine NEUTRIK 2pcs Speakon NL4MP with switch for 1+/-1 or 2+/2- input
Speaker size (HxWxD)
280 x 420 x 390 mm
Speaker Weight
15.5 kg
Shipping information
20.5 kg 390 x 500 x 570 mm
Accessories
CCA10-SK (Skateboard flightcase) CCA10-FR (Crossbow flying frame) CCA10-FYOKE (Foldable Yoke) CCA10-ST (Support frame for stacking) CC10-ZBAG (padded bag with Zip) CPC-70 (pole bar with crank) CCA-MA (mounting adapter)
