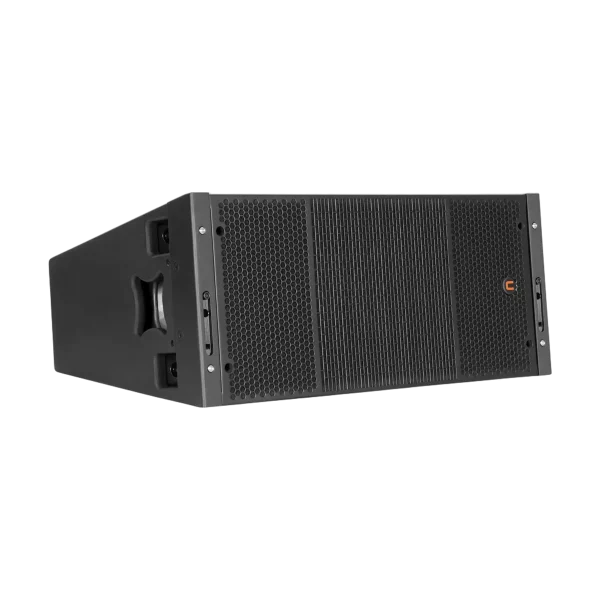

Overview
Versatile dominance in a remarkably efficient package—the CELTO IWAC210 G2 combines high output with an outstanding size-to-performance ratio, scaling effortlessly to audiences of 30,000. This 2-way line array module excels in touring, large venues, stadiums, arenas, and permanent installations requiring precise coverage and authoritative sound. Real 700W + 110W RMS power handling with premium in-house Neodymium drivers for exceptional clarity and throw across medium to long distances. Up to 16 elements per array with 12:1 safety factor, supported by integrated cable-free rigging hardware for fast, secure deployment. Baltic birch plywood…
Read the full overview
Versatile dominance in a remarkably efficient package—the CELTO IWAC210 G2 combines high output with an outstanding size-to-performance ratio, scaling effortlessly to audiences of 30,000. This 2-way line array module excels in touring, large venues, stadiums, arenas, and permanent installations requiring precise coverage and authoritative sound. Real 700W + 110W RMS power handling with premium in-house Neodymium drivers for exceptional clarity and throw across medium to long distances. Up to 16 elements per array with 12:1 safety factor, supported by integrated cable-free rigging hardware for fast, secure deployment. Baltic birch plywood construction with touring-grade finish ensures durability without unnecessary weight. Proprietary waveguide and driver alignment deliver consistent 100° horizontal dispersion and controllable vertical coverage. High sensitivity and 137dB peak SPL provide effortless headroom even in challenging acoustic environments. Compatible with IWAC118S subwoofers for ground or flown bass extension in mixed arrays. The IWAC210 G2 demonstrates that professional line array performance can be both powerfully scalable and surprisingly practical—no drama, just results.
Specifications
- Speaker type
- Line source
- Power Handling (AES standard)
- 700W RMS LF + 110W RMS HF 2800W Peak LF / 440W Peak HF
- Nominal impedance
- 8Ω LF + 16Ω HF
- Average sensitivity
- 99dB LF + 110dB HF 1 W / 1 m
- Maximum SPL (calculated)
- 130dB RMS / 137dB Peak above 1 kHz
- Frequency response (−6 dB no preset)
- 50~18000 Hz
- Nominal directivity (−6 dB)
- 100° (H), Vertical is array dependant
- Cabinet
- Marine grade Baltic Birch Plywood Tongue & Groove construction
- Cabinet finish
- Touring Grade Rubberized PolyUrea Black coating Acoustic PU foam behind Front grill
- Floor monitor use
- No
- Flying hardware
- Fully integrated, cable-free, rigging
- Mounting hardware
- 4 Sockets for Ø35 mm mounting adpater
- LF
- 2x 10" CELTO 10MBN350-16
- Woofer Chassis
- Die Cast Aluminium
- Woofer Voice coil
- 2.5" / 65 mm PI grade CCAW
- HF
- CELTO HFDN755 loaded by IWAC waveguide
- HF RMS power (AES standard)
- 110W above 1 kHz
- HF Exit
- 1.5" / 38 mm
- HF Voice coil diameter
- 3" / 75 mm
- HF Diaphragm
- AlTiN (Aluminium Titanium Nitride) dome with PI surround
- Crossover
- 1 kHz 2-way active (Bi-Amp mode only)
- Connectivity
- Genuine NEUTRIK 2pcs Speakon NL4MP 1+/-1 LF and 2+/2- HF input
- Speaker size (HxWxD)
- 305 x 700 x 465 mm
- Speaker Weight
- 28 kg
- Shipping information
- 35 kg 414 x 800 x 590 mm
- Accessories
- IWAC210-TK (Touring kit) IWAC210-CB (crossbow flying frame) IWAC210-MA (Mounting adpater) IWAC210-SBAG (padded cover bag) CPC-70 (pole bar with crank)
