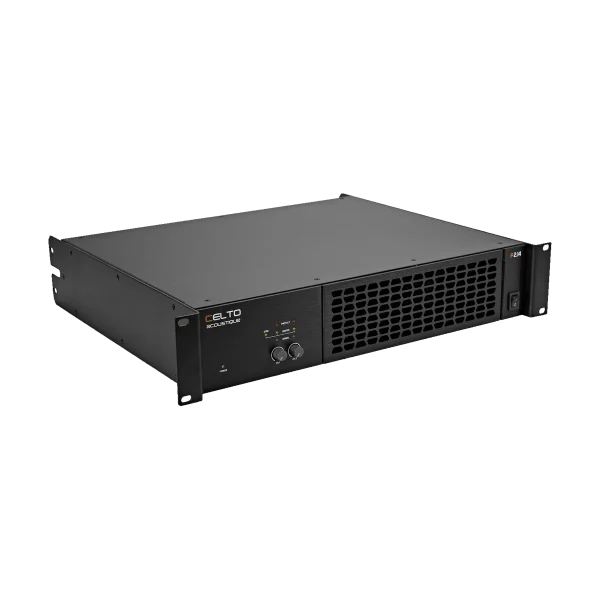

P2.14

P series · Amplifiers

Frequency Response (−1 dB): 10 – 25 000 Hz
Weight Net: 15 kg

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Performance With punch—the CELTO P2.14 delivers 2× 800W 8Ω / 2x 1400W 4Ω with remarkable efficiency and musicality. Ideal for compact touring systems and fixed installs needing clean drive. Proprietary TrueSound preamp with audiophile components ensures lively transients. Continuous protection and high-voltage design safeguard under stress. NEUTRIK connectors and flexible modes add professional flexibility. 15 kg in standard 2U—built to travel and endure. The P2.14 brings flagship DNA to accessible power levels.

Specifications

Channels: 2
RMS Power 8Ω (per ch., EIA 1 kHz 1% THD): 800W
RMS Power 4Ω (per ch.): 1400W
RMS Power 2Ω (per ch.): Not recommended
Frequency Response (−1 dB): 10 – 25 000 Hz
Typical THD: < 0.05%
Signal to Noise Ratio (A-weighted): > 100dB
Crosstalk (1 kHz): >70dB
Slew Rate: > 15 V/µs
Damping Factor (8Ω): > 800 (internal)
Voltage Gain: 34dB (50 times voltage)
Input Impedance: 20 kΩ balanced
Preamp: Ultra-low noise and distortion circuit with with TrueRMS JFET VCA limiters
Output Stage / Class: Proprietary High-Speed High-Current 4th generation discrete Class D (92% efficiency)
Power Supply: Advanced Linear topology with with toroidal transforner and tracking current
Cooling: Temperature regulated long life brush-less fans, front to back airflow FEA optimized Radial heat-sink for maximum heat transfer
Power Connector: SEETRONIC PowerCon
Input Connectors: 2x NEUTRIK XLR input + 2x NEUTRIK XLR link
Output Connectors: 2x NEUTRIK Speakon
Dimensions (W×H×D) mm: 482×88×380 (2U)
Weight Net: 15 kg
