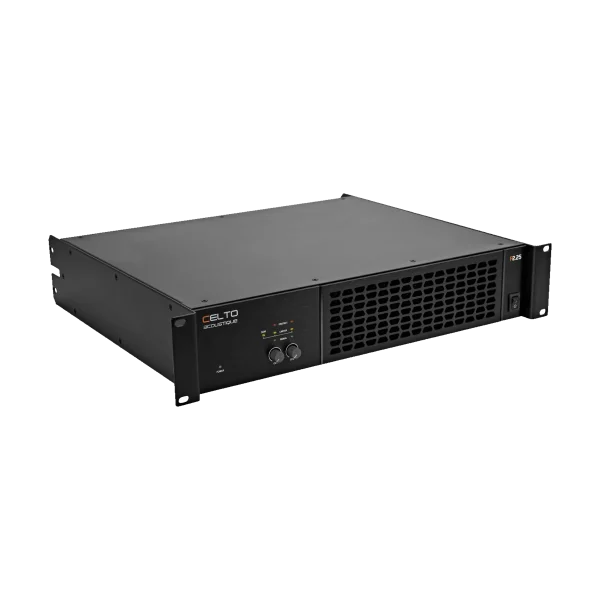

P2.25

P series · Amplifiers

Frequency Response (−1 dB): 10 – 25 000 Hz
Weight Net: 17 kg

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

The CELTO P2.25 steps up to 2× 1300W 8Ω / 2x 2500W 4Ω for great system headroom. Perfect balance for medium venues and touring mains/subs. Same discrete Class D efficiency (92%) and TrueSound circuit as the series. Same gain as all the model in the series (34 dB) and fast response for dynamic material. Robust build with comprehensive protection suite. 17 kg is still suitable for mobile and touring applications in addition for fixed installations. When performance demands more muscle without excess size. The P2.25 delivers exactly that.

Specifications

Channels: 2
RMS Power 8Ω (per ch., EIA 1 kHz 1% THD): 1300W
RMS Power 4Ω (per ch.): 2500W
RMS Power 2Ω (per ch.): Not recommended
Frequency Response (−1 dB): 10 – 25 000 Hz
Typical THD: < 0.05%
Signal to Noise Ratio (A-weighted): > 100dB
Crosstalk (1 kHz): >70dB
Slew Rate: > 20 V/µs
Damping Factor (8Ω): > 800 (internal)
Voltage Gain: 34dB (50 times voltage)
Input Impedance: 20 kΩ balanced
Preamp: Ultra-low noise and distortion circuit with with TrueRMS JFET VCA limiters
Output Stage / Class: Proprietary High-Speed High-Current 4th generation discrete Class D (92% efficiency)
Power Supply: Advanced Linear topology with with toroidal transforner and tracking current
Cooling: Temperature regulated long life brush-less fans, front to back airflow FEA optimized Radial heat-sink for maximum heat transfer
Power Connector: SEETRONIC PowerCon
Input Connectors: 2x NEUTRIK XLR input + 2x NEUTRIK XLR link
Output Connectors: 2x NEUTRIK Speakon
Dimensions (W×H×D) mm: 482×88×380 (2U)
Weight Net: 17 kg
