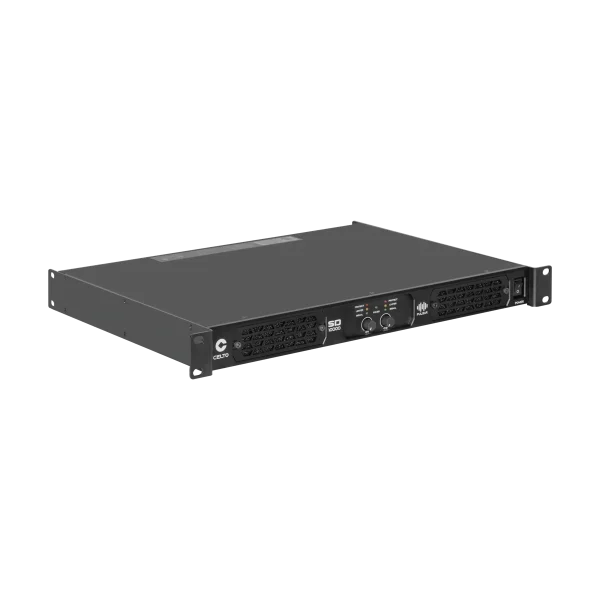

SD10000

SD-SQ series · Amplifiers

Frequency Response (−1 dB): 10 – 25 000 Hz
Weight Net: 8 kg

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Stereo flagship monster—the CELTO SD10000 commands 2x 2800W 8Ω /5000W 4Ω for ultimate system headroom. Built for the largest line arrays and sub arrays in touring and installation. Ultra low depth chassis (326 mm) and only 8kg weight reflect massive efficiency. The exclusive Virtual Class-A circuit reaches warmth and precision audiophile tonality. Same premium preamp, protection, and NEUTRIK connectivity as series. When nothing less than maximum stereo power will do. The SD10000 turns amplification into domination.

Specifications

Channels: 2
RMS Power 8Ω (per ch., EIA 1 kHz 1% THD): 2800W
RMS Power 4Ω (per ch.): 5000W
RMS Power 2Ω (per ch.): 5300W
Bridge 8Ω: 1x 10000W
Bridge 4Ω: 1x 10600W
Frequency Response (−1 dB): 10 – 25 000 Hz
Typical THD: < 0.03 % at 1W / < 0.09 % at half power
Signal to Noise Ratio (A-weighted): > 108 dB
Crosstalk (1 kHz): > 75 dB
Slew Rate: > 60 V/µs
Damping Factor (8Ω): > 800 (internal)
Voltage Gain: 34 dB (50 times voltage)
Input Impedance: 20 kΩ balanced
Preamp: Ultra-low noise and distortion circuit with MUSE® Fine Gold capacitors and TrueRMS JFET VCA limiters
Output Stage / Class: Proprietary High-Speed High-Current 4th generation discrete Class D (92% efficiency)
Power Supply: Switch mode with active PFC (Universal AC input from 90 to 260V)
Cooling: Temperature regulated long life brush-less fans, front to back airflow
Power Connector: SEETRONIC PowerCon
Input Connectors: 4x Balanced NEUTRIK XLR
Output Connectors: 4x NEUTRIK SpeakON NL4MP
Dimensions (W×H×D) mm: 482×45×326 (1U)
Weight Net: 8 kg
