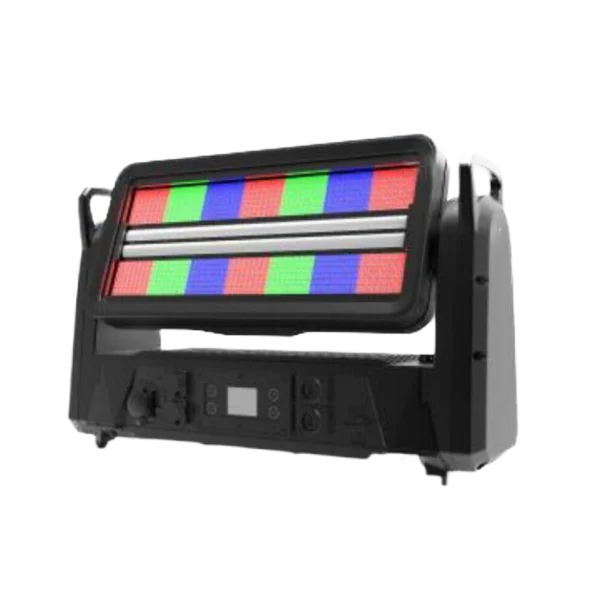

ZEUS

Specifications

Light sources

392 × 1.5 W CW + 784 × 0.8 W RGB

Optics

117° beam angle; ≥ 72,600 lm (peak value); 1,600 lux @ 5 m (117°); RGBW-colorspace mode; unique pulse strobe mode

Colour temperature

2700 K – 8000 K

CRI

Ra ≥ 90

Control features

DMX512; RDM; Art-Net; Master/Slave; 8/11/13/24/30/70/97 CH; 28-segment strobe white + 14-segment strobe color RGB; 4 dimming curves; 0–100% dimming

User interface

TFT display

Input voltage

100–240 V, 50/60 Hz

Power consumption

Power 700 W, strobe 1,200 W

Power connector

IP Power IN/OUT

Control connector

IP DMX IN/OUT + IP RJ45 + IP USB

Rigging

Omega-bracket mounting; truss mounting with clamps; secondary safety cable required for overhead installation

Mounting position

Any position (185° tilt movement)

IP rating

IP65

Dimensions

494 × 316 × 160 mm (19.4 × 12.4 × 6.3 in)

Weight

12.2 kg (26.9 lbs)

LED lifespan (data sheet)

50K hrs

Photochromic (data sheet)

R:623±3NM, G:525±3NM, B:455±3NM, W:6000±100K

Power factor (data sheet)

≥0.95

Ambient (data sheet)

-20℃~45℃

Cooling (data sheet)

low noice fan

Housing (data sheet)

aluminium-magnesium alloy,hot paint

Accessories (data sheet)

Power Cable. Omega Bracket
