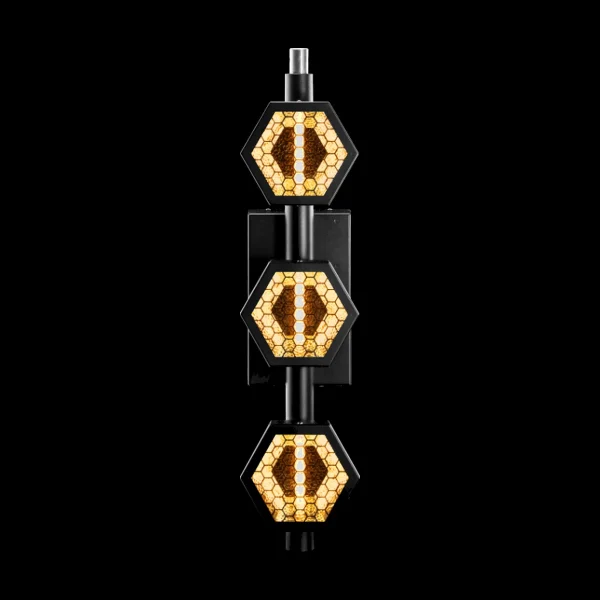

EVO ELEMENT

3 × haloLED™ (3 × 60W) · 3 × RGBW glow (3 × 12W)

Power consumption: max 240W
Colour temperature: 1600-3200K · RGBW
IP rating: IP20
Weight: 5,2kg (11,46lbs)

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

TRUE TUNGSTEN EMULATION 3×60W Portman haloLED™ powerful light sources with full halogen emulation. Experience seamless transitions from warm, low-intensity glows to cooler, blinding effects—each light source equaling a 300W halogen lamp. Customize your light show by selecting different dimming curves or strobe mode. You’ll be amazed at how closely our haloLED™ replicates real halogen light.

haloLED™ and RGBW glow

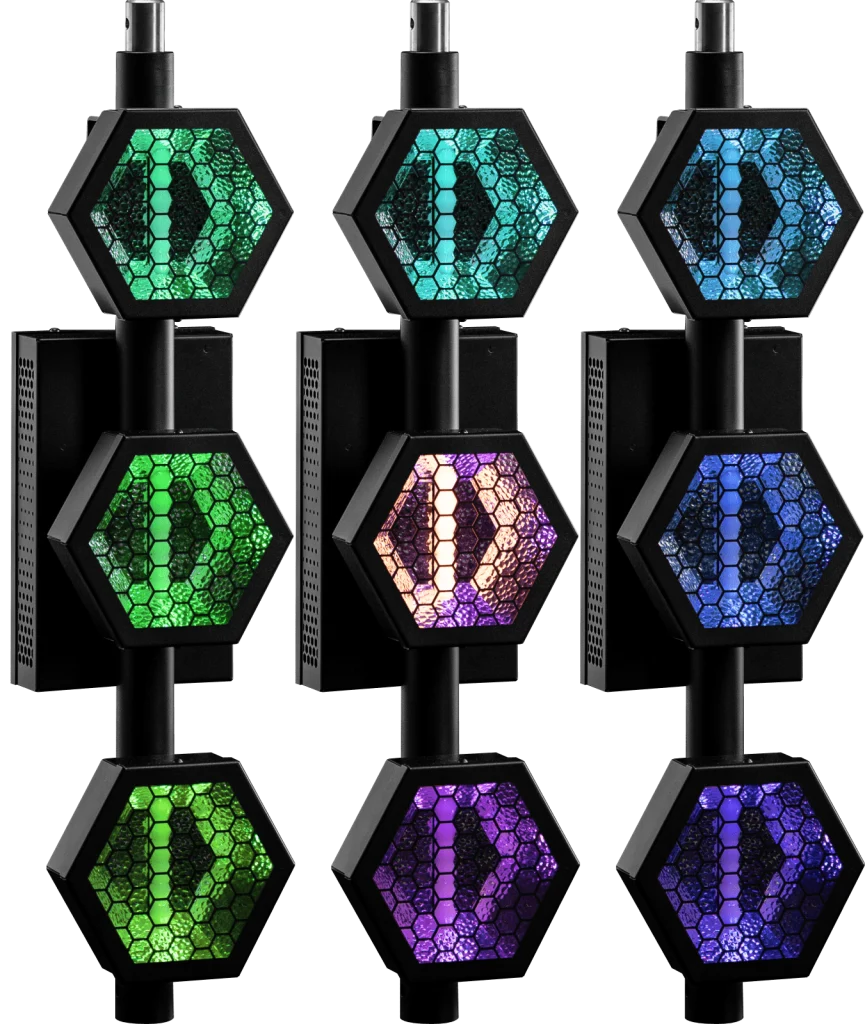

Three 60 W haloLED™ main sources, 1600–3200 K, with a CRI above 90, and three 12 W RGBW glow sources.

P2 EVO™ compatibility

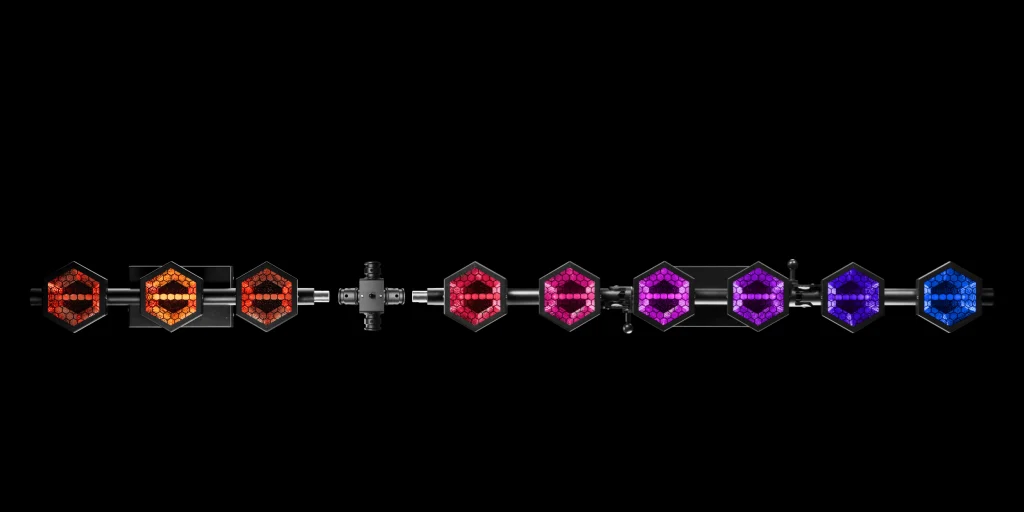

Two EVO ELEMENT™ match the height of one P2 EVO™, with the same pixel sizes, light sources and accessories.

Rigging

Two 12 mm holes for a clamp on the back. A hanging adaptor is included; the base is sold separately.

Watch the film

Specifications

Dimensions: 866 x 205 x 189mm (34.09 x 8.07 x 7.44in)
Weight: 5,2kg (11,46lbs)
Rigging: 2 × 12 mm (1/2 in) holes for clamp on back · Base (not included) · Hanging adaptor (included) with 12 mm (1/2 in) hole for clamp
Mounting position: Any
Input voltage: 100-240V 50Hz/60Hz
Power consumption: max 240W
Power connector: PowerCon TRUE1 power through
Control connector: 5 PIN XLR (both: in & out)
Light sources: 3 × haloLED™ (3 × 60W) · 3 × RGBW glow (3 × 12W)
Colour temperature: 1600-3200K · RGBW
CRI: >90
Optics: High reflective hammered reflector · Opal diffuser
Control features: 6 DMX modes (9-39 DMX channels) · RDM · Macros · W-DMX (optional module)
User interface: High-contrast LCD display · Highlighted buttons
Warranty: 24 months
IP rating: IP20
What's in the box: Fixture · 2m power cord (PowerCon TRUE 1<-> no plug) · Hanging adapter (also for tripod) · User manual
P2 EVO™ compatibility: Height: · 2 × EVO ELEMENT™ = · 1 × P2 EVO™ · The same pixels' sizes · The same light sources · The same accessories

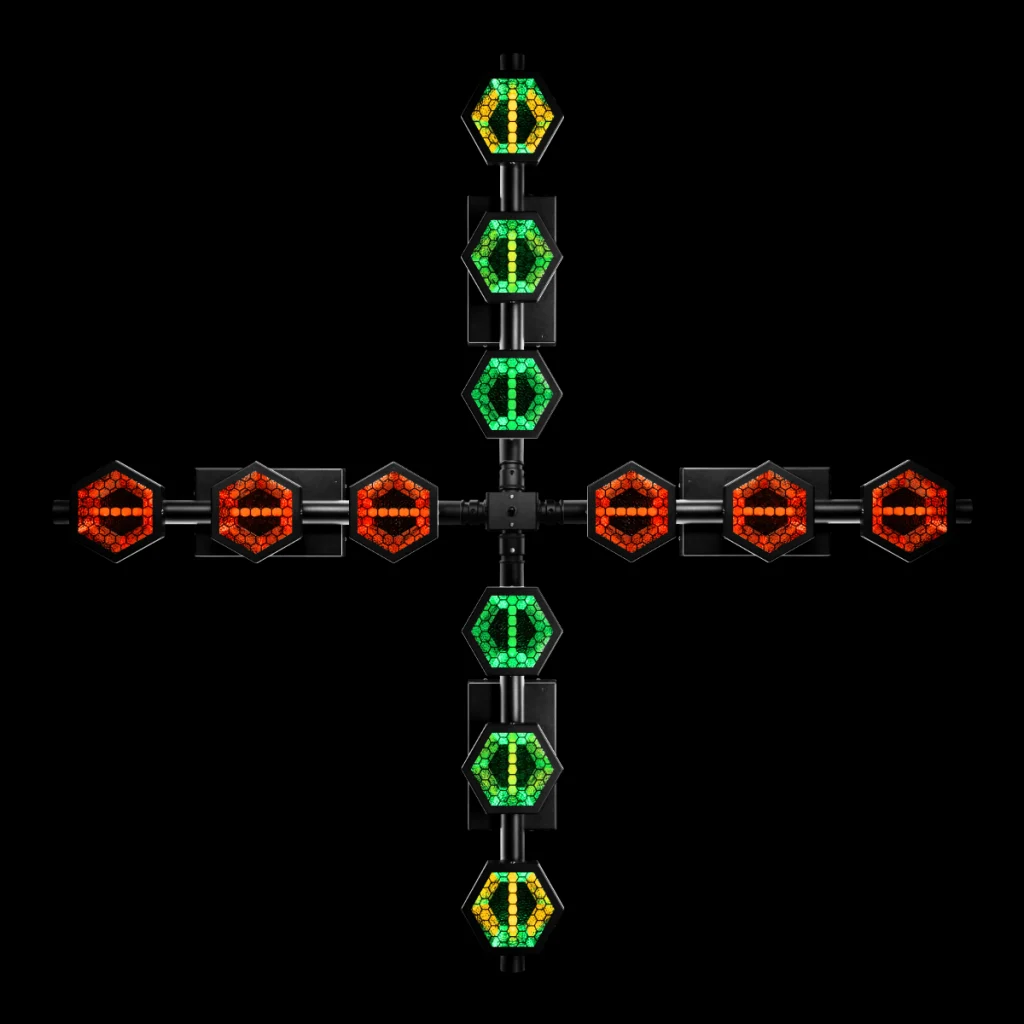

Additional accessories: E-CONN™ (4-way connector. Each 30° adjustable arms) · P2 EVO base · P2 EVO height adapter · WDMX module · Male-male connector · Flight case
Libraries: go to PORTMAN® SUPPORT PORTAL
