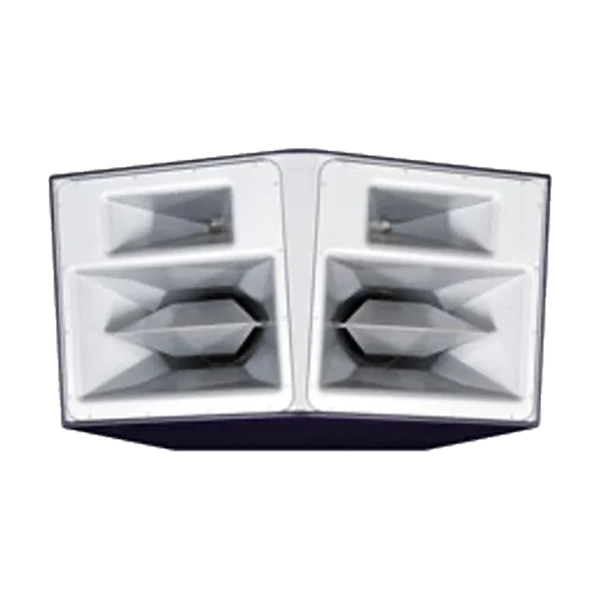

Funktion-One DS210

DS210

Dance Stack two way loudspeaker - 2 × 10" & 2 × 1.4", 100°H x 25°V, biamped

Operating band low mid: 220Hz – 4kHz
Sensitivity low mid: 112dB at 3.5V
Weight: 64kg (141lbs)
Nominal dispersion: 100° Horizontal x 25° Vertical

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Driver low mid: 2 x 10”
Operating band low mid: 220Hz – 4kHz
Sensitivity low mid: 112dB at 3.5V
Power AES low mid: 500W
Nominal impedance low mid: 12Ω
Driver high: 2 x 1.4”
Operating band high: 4kHz – up
Sensitivity high: 114dB at 4V
Power AES high: 150W
Nominal impedance high: 16Ω
Usable bandwidth (-3 dB): 200Hz – 18kHz
Weight: 64kg (141lbs)
Nominal dispersion: 100° Horizontal x 25° Vertical
Connectors: 2 x Neutrik NL4
