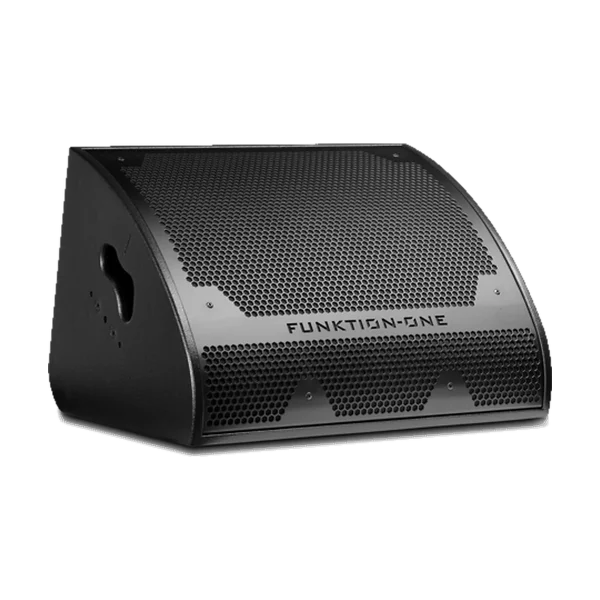

Funktion-One PSM15

PSM15

Point Source Stage Monitor, three way loudspeaker - Triple concentric 15" & 1.4'', 70° x 50, biamped, passive HF

Operating Band (MHF): 1kHz – Up
Sensitivity at 1 m (MHF): 105dB at 2.8V
Power (AES) (MHF): 100W
Weight: 28kg (62lbs)

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Data sheet (PDF)

Specifications

Driver (MHF): MHF
Operating Band (MHF): 1kHz – Up
Sensitivity at 1 m (MHF): 105dB at 2.8V
Power (AES) (MHF): 100W
Nominal Impedance (MHF): 8Ω
Driver (LF): 15” (LF)
Operating Band (LF): 60Hz – 1kHz
Sensitivity at 1 m (LF): 96dB at 2.8V
Power (AES) (LF): 600W
Nominal Impedance (LF): 8Ω
Usable Bandwidth (−3 dB): 80Hz – 18kHz
Weight: 28kg (62lbs)
Nominal Dispersion: 50° Horizontal x 70° Vertical (rotatable by 90°)
Connectors: 2 x NLT4M
