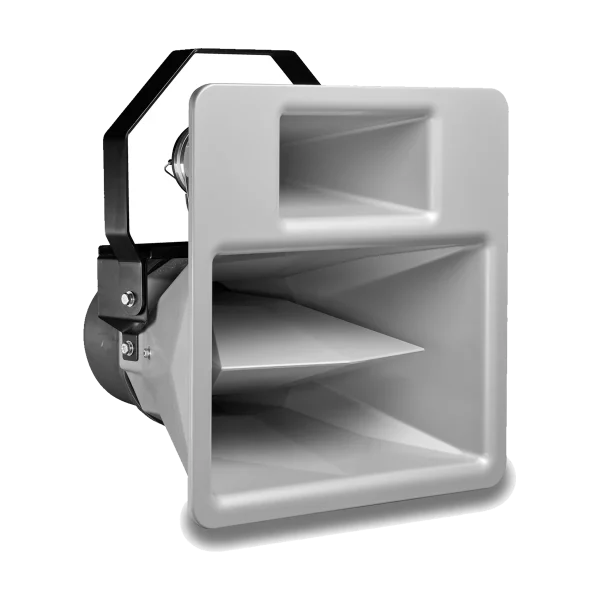

Funktion-One EVO7SH

EVO7SH

Evolution 7 two way skeletal loudspeaker - 10" & 1.4", 40°H x 20°V

Operating band MF
200Hz – 4kHz
Sensitivity at 1 m MF
112dB at 4.9V
Power (AES) MF
250W
Weight
23kg (51lbs)
Protection
Colour
Amplification

Your choices are added to the quote request.

Request a quoteLog in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Driver MF
10"
Operating band MF
200Hz – 4kHz
Sensitivity at 1 m MF
112dB at 4.9V
Power (AES) MF
250W
Nominal impedance MF
24Ω
Driver HF
1.4"
Usable bandwidth (−3 dB)
200Hz – 18kHz
Weight
23kg (51lbs)
Nominal dispersion
40° Horizontal x 20° Vertical
Connectors
Neutrik NL4 or Junction box option

Choose amplification at the top of the page to see every specification.
