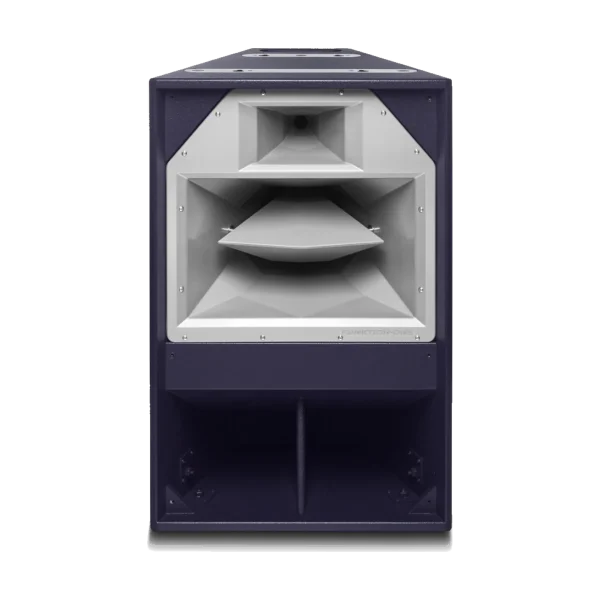

EVO2

Name: EVO2
Brand: Funktion-One
SKU: EVO2

Evolution 2 three way loudspeaker - 12", 8" & 1", 50°H x 25°V

Your choices are added to the quote request.

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Driver LF: 12”
Operating band LF: 60/85Hz – 280Hz
Sensitivity LF: 100dB at 2.8V
Power AES LF: 600W
Nominal impedance LF: 8Ω
Usable bandwidth (-3 dB): 85Hz – 18kHz
Weight: 36kg (80lbs)
Nominal dispersion: 50° Horizontal x 25° Vertical
Connectors: 2 x Neutrik NL8 (triamp) or NL4 (biamp) option
Amplification: 3-way active, tri-amp (NL8)
Driver MF: 8"
Operating band MF: 280Hz – 5kHz
Sensitivity at 1 m MF: 111dB at 4V
Power (AES) MF: 200W
Nominal impedance MF: 16Ω
Driver HF: 1"
Operating band HF: 5kHz – 18kHz
Sensitivity at 1 m HF: 112dB at 4V
Power (AES) HF: 75W
Nominal impedance HF: 16Ω
Connectors: 2 × Neutrik NL8 (wired in parallel)
Connector wiring: NL8 2+/2− LF (8Ω), 3+/3− MF (16Ω), 4+/4− HF (16Ω); 1+/1− unused (link-through for Evo 2L)
Amplification: 3-way, bi-amp with passive MF/HF crossover (NL4)
Driver MF/HF: 8" + 1"
Operating band MF/HF: 280Hz – 18kHz
Sensitivity at 1 m MF/HF: 111dB at 4V
Power (AES) MF/HF: 200W
Nominal impedance MF/HF: 16Ω
Passive crossover: MF/HF passive crossover network built into the NL4 connector panel
Connectors: 2 × Neutrik NL4 (wired in parallel)
Connector wiring: NL4 1+/1− LF (8Ω), 2+/2− MF+HF (16Ω)
