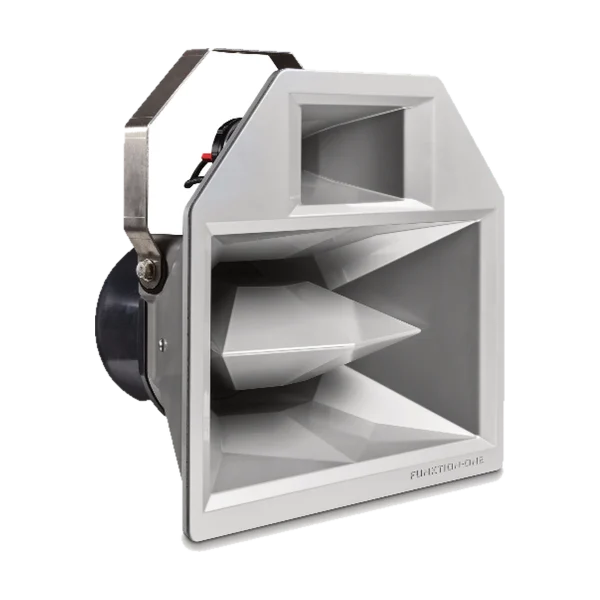

Funktion-One EVO2SH-P

EVO2SH-P

Evolution 2 two way skeletal loudspeaker - 8" & 1", 50°H x 25°V, passive HF

Operating band: 280Hz – 18kHz
Sensitivity at 1 m: 111dB at 4V
Power (AES): 200W
Weight: 10kg (22lbs)

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Driver: 8" + 1"
Operating band: 280Hz – 18kHz
Sensitivity at 1 m: 111dB at 4V
Power (AES): 200W
Nominal impedance: 16Ω
Usable bandwidth (−3 dB): 280Hz – 18kHz
Low frequency response (−10 dB): 200Hz
Weight: 10kg (22lbs)
Nominal dispersion: 50° Horizontal × 25° Vertical
Connectors: 2 × Neutrik NL4
Amplification: Passive crossover
