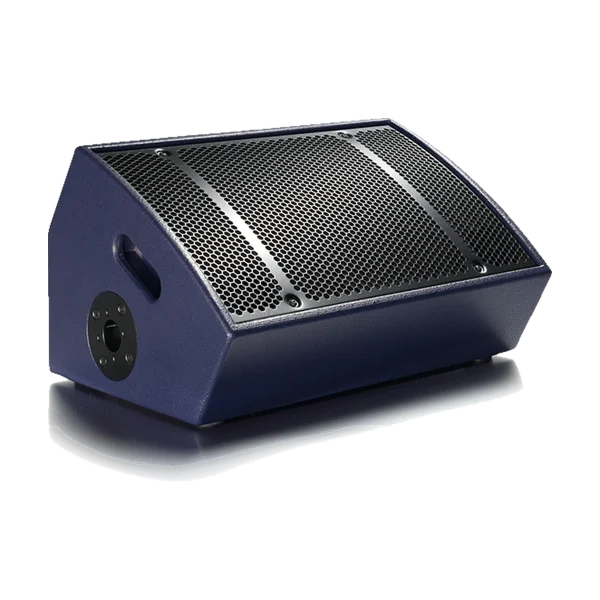

Funktion-One PSM12

PSM12

Point Source Stage Monitor, two way loudspeaker - Concentric 12" & 1.4'', 70°, biamped & switchable passive HF

Operating Band (active LF): 40Hz – 2.5kHz
Sensitivity at 1 m (active LF): 101dB at 2.8V
Power (AES) (active LF): 400W
Weight: 23kg (50lbs)

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Data sheet (PDF)

Specifications

Driver (active LF): 12”
Operating Band (active LF): 40Hz – 2.5kHz
Sensitivity at 1 m (active LF): 101dB at 2.8V
Power (AES) (active LF): 400W
Nominal Impedance (active LF): 8Ω
Driver (active HF): 1.4”
Operating Band (active HF): 2.5kHz – Up
Sensitivity at 1 m (active HF): 111dB at 4V
Power (AES) (active HF): 75W
Nominal Impedance (active HF): 16Ω
Driver (passive mode): 12” + 1.4”
Operating Band (passive mode): 40Hz – Up
Sensitivity at 1 m (passive mode): 100dB at 2.8V
Power (AES) (passive mode): 400W
Nominal Impedance (passive mode): 8Ω
Usable Bandwidth (−3 dB): 65Hz – 17kHz
Weight: 23kg (50lbs)
Nominal Dispersion: 70° Conical
Connectors: 2 x Neutrik NL4
