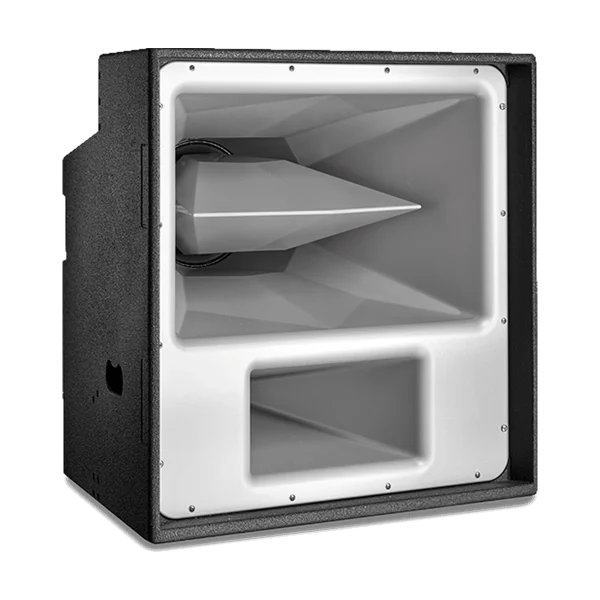

Funktion-One EVO7TH

EVO7TH

Evolution 7 touring two way loudspeaker - 10" & 1.4", 40°H x 20°V, biamped

Operating band MF: 200Hz – 4kHz
Sensitivity at 1 m MF: 112dB at 4.9V
Power (AES) MF: 250W
Weight: 44kg (97lbs) without wheelboard

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Driver MF: 10"
Operating band MF: 200Hz – 4kHz
Sensitivity at 1 m MF: 112dB at 4.9V
Power (AES) MF: 250W
Nominal impedance MF: 24Ω
Driver HF: 1.4"
Operating band HF: 4kHz – 18kHz
Sensitivity at 1 m HF: 114dB at 5.6V
Power (AES) HF: 75W
Nominal impedance HF: 32Ω
Usable bandwidth (−3 dB): 200Hz – 18kHz
Weight: 44kg (97lbs) without wheelboard
Nominal dispersion: 40° Horizontal x 20° Vertical
Connectors: 2 x Neutrik NL8
