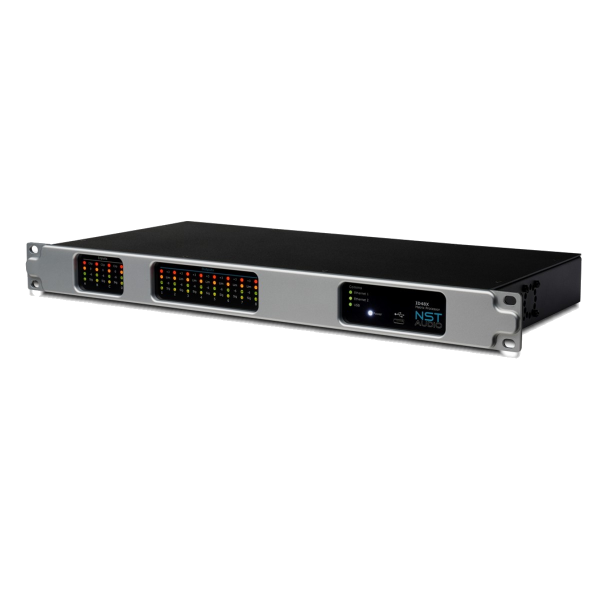

ID48X

Specifications

Analogue Inputs

4; Electronically balanced, pin 2 hot

Cmrr

>60dB @ 1kHz

Maximum Level

>20dBu

Input Impedance

10kΩ balanced

AES Inputs

2 x 2 channel; Transformer balanced, pin 2 hot

AES Input Sample Rates

8kHz to 192kHz

AES Input s/n Ratio

139dB

Input Impedance

110Ω

Analogue Outputs

8; Electronically balanced, pin 2 hot

Maximum Level

>20dBu

Source Impedance

<60Ω

AES Outputs

4 x 2 channel; Transformer balanced, pin 2 hot

Sample Rate

same as operating sample rate

Source Impedance

110Ω

Frequency Response (12Hz to 32kHz)

+/-0.2dB

Dynamic Range

>119dB 'A' weighted (in to out analogue)

THD + N (+19dB @ 1kHz)

0.00029%

Latency

0.427ms (in to out, analogue)

Input Gain (per channel)

-30 to +15dB in 0.1dB steps, mute, phase

Input Delay (per channel)

0 to 1.3s in 10.4uS steps

Input Compressor (per channel)

Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-Knee

Input Parametric EQ (per channel)

8 bands – parametric, low shelf, high shelf, notch, band-pass

Input Graphic EQ (per channel)

28 bands

Input Dynamic EQ (per channel)

3 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release

Input High-Pass Filter (per channel)

Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)

Routing Inputs to Outputs

Choice of modes (Matrix Mixer, Free Routing, 1×8 crossover, 2×4 crossover, 4×2 crossover, 2×3 crossover + 2 Aux)

Output Parametric EQ (per channel)

16 bands – parametric, low shelf, high shelf, notch, band-pass

Output High-Pass and Low-Pass Filter (per channel)

Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)

Output Gain (per channel)

-30 to +15dB in 0.1dB steps, mute, phase

Output Delay (per channel)

0 to 1.3s in 10.4uS steps

Output Limiter (per channel)

Threshold (-50 to +22dBu), attack, release, auto attack/release option

FIR Support

2048 total taps

Presets

Up to 100

Comms

2 x 1Gbps Ethernet on rear panel (Ethercon connector); USB Type C socket

Power Requirements

3-pin IEC input, fused; 90-250VAC, 50-60Hz < 20W

Height

44mm (1.75inch) 1U

Depth

213mm (8.4 inches)

Width

482mm (19 inches)

Net

2.5kg

Shipping

3.5kg
