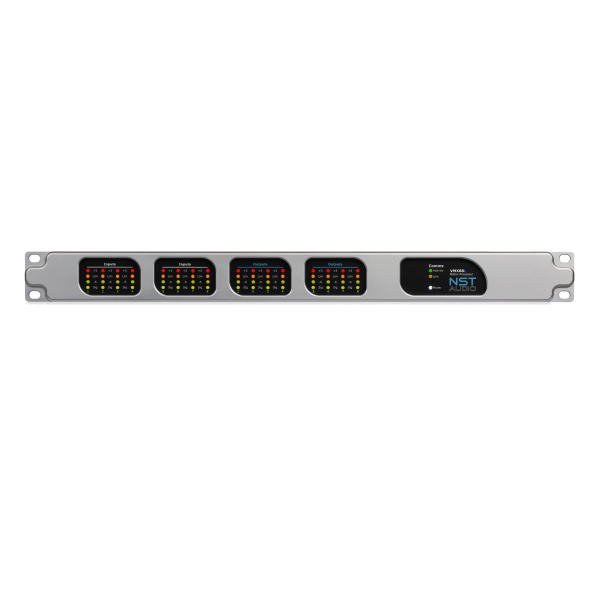

VMX88L

Processors

Frequency Response: 12Hz – 32kHz +0.2dB

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Analogue Inputs: 8; Electronically Balanced, Phoenix connectors
Cmrr: >60dB @ 1kHz
Snr: 119dB ‘A’wtd
THD+N (+19dB @ 1kHz): 0.0007%
Maximum Level: >20dBu
Input Impedance: 10k Balanced
Input Gain (per channel): -30 to +15dB in 0.1dB steps, mute, phase
Input Delay (per channel): 0 to 1.3s in 10.4uS steps
Input Compressor (per channel): Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-Knee
Input Parametric EQ (per channel): 8 bands – parametric, low shelf, high shelf, notch, band-pass
Input Dynamic EQ (per channel): 2 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
Input High-Pass Filter (per channel): Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Analogue Outputs: 8; Electronically Balanced, Phoenix connectors
Snr: 122dB ‘A’wtd
THD+N (+19dB @ 1kHz): 0.00029%
Maximum Level: >20dBu
Source Impedance: <60R
Frequency Response: 12Hz – 32kHz +0.2dB
Dynamic Range: >119dB ‘A’wtd (in-out analogue)
Latency: 0.427mS (in-out analogue, 96kHz)
Routing Inputs to Outputs: Full matrix mixer
Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel): Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel): -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel): 0 to 1.3s in 10.4uS steps
Output Limiter (per channel): Threshold (-50 to +22dBu), attack, release, auto attack/release option
Presets: Up to 100
Comms: 100Mbps Ethernet on rear panel (RJ45 connector)
Power Requirements: 3-pin IEC input, fused; 90-250VAC, 50-60Hz < <20W
Height: 44mm (1.75inch) 1U
Depth: 170mm (6.75 inches)
Width: 482mm (19 inches)
Net: 2.2kg
Shipping: 3.4kg
