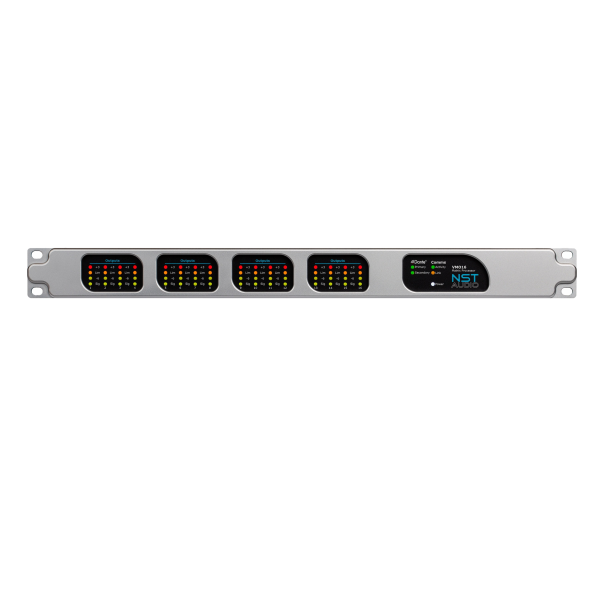

VMO16

Processors

Frequency Response: 12Hz – 32kHz +0.2dB

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Output processor for Dante networked installs: 16 Dante input channels feed a 16x16 matrix mixer to 16 analogue outputs. Each output has 16-band parametric EQ, 48 dB/oct HPF/LPF, up to 1.3 s delay and a two-stage PXL limiter. Phoenix connectors, 4 GPI, up to 30 presets.

Specifications

Analogue Outputs: 16 Electronically Balanced, Phoenix connectors
Snr: 122dB ‘A’wtd
Maximum Level: >20dBu
Source Impedance: <60R
Frequency Response: 12Hz – 32kHz +0.2dB
Dynamic Range: >119dB ‘A’wtd
THD+N (+19dB @ 1kHz): 0.00029%
Latency: 0.283mS (out analogue, 96kHz)
Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel): Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel): -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel): 0 to 1.3s in 10.4uS steps
Output Limiter (per channel): Threshold (-50 to +22dBu), attack, release, auto attack/release option
Presets: Up to 30
Networked Audio: 16 input Dante channels on dual redundant RJ45 connectors
Comms: 100Mbps Ethernet on rear panel (RJ45 connector)
Power Requirements: 3-pin IEC input, fused; 90-250VAC, 50-60Hz < 20W
Height: 44mm (1.75inch) 1U
Depth: 170mm (6.75 inches)
Width: 482mm (19 inches)
Net: 2.2kg
Shipping: 3.4kg
