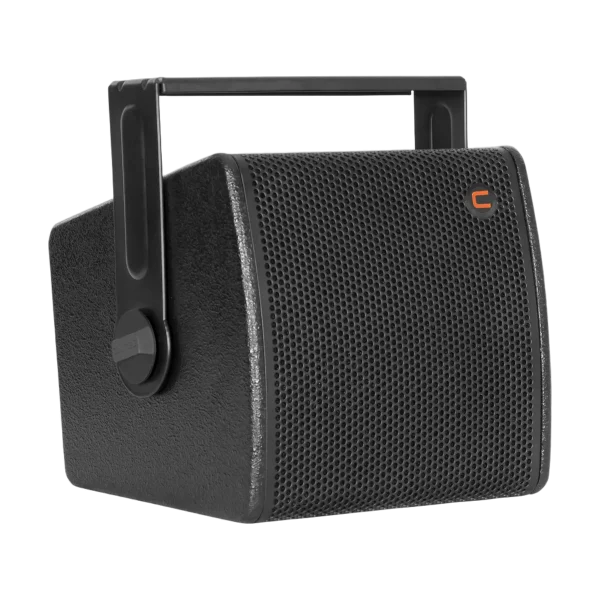

iFIX8 G2

FIX Install Full Range Coaxial Speaker

Frequency response (−6 dB no preset): 95~22000 Hz
Maximum SPL (calculated): 120 dB RMS / 126 dB Peak
Speaker Weight: 7 kg
Nominal directivity (−6 dB): 80° conical

Your choices are added to the quote request.

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Read the full overview

Big sound in a small package—that's the promise of the CELTO iFIX8 G2, delivering a solid 300 W RMS with exceptional efficiency. This coaxial installation loudspeaker is engineered for high-impact near-field reinforcement when paired with a subwoofer. Ideal for vibrant nightclubs, pubs, restaurants, multifunctional venues, auditoriums, and premium background music setups. Its 8" coaxial driver with HSP annular ring radiator HF delivers outstanding clarity and an impressive SPL-to-size ratio. Audiophile-grade crossover with Right-Phase design ensures seamless integration and precise imaging. Built from robust birch plywood and finished in black, white, natural wood, or custom colors to suit any interior. Multi-function yoke bracket included for quick, reliable wall or ceiling mounting. With 95 dB sensitivity and 126 dB peak SPL, it transforms compact spaces into sonic powerhouses. Proof that you don't need massive cabinets to achieve massive sound—the iFIX8 G2 simply gets the job done with style.

Specifications

Speaker type: FIX Install Full Range Coaxial Speaker
Power Handling (AES standard): 300 W RMS / 1200 W Peak
Nominal impedance: 8 Ω
Average sensitivity: 95 dB / 1 W / 1 m
Maximum SPL (calculated): 120 dB RMS / 126 dB Peak
Frequency response (−6 dB no preset): 95~22000 Hz
Nominal directivity (−6 dB): 80° conical
Cabinet: Exterior grade Birch plywood Tongue & Groove construction
Cabinet finish: Textured Waterborne Black coating Acoustic PU foam behind Front grill
Floor monitor use: No
Flying hardware: Multi-function Yoke with dented ring (can be mounted with screws or Eyebolt, Included in carton)
Mounting hardware: Yes for Yoke, wall mount bracket and CCA-MA
LF: 8" coaxial CELTO 8CXT250
Woofer Chassis: Die Cast Aluminium
Woofer Voice coil: 2.5" / 65 mm
HF: CELTO ACD 40 (single magnet coaxial mounting)
HF RMS power (AES standard): 60 W above 1.5 kHz
HF Exit: 1" / 25 mm
HF Voice coil diameter: 1.7" / 44 mm
HF Diaphragm: HSP Annular (High Strength Polymer)
Crossover: 1.6 kHz 2-way passive network
Connectivity: PHOENIX MSTBV 2.5/4-GF-5.08 4 pin header 2.5 mm² wire / 5.08 mm pitch
Speaker size (HxWxD): 243 x 250 x 250 mm
Speaker Weight: 7 kg
Shipping information: 9 kg 350 x 320 x 370 mm
Accessories: CCA-MA (mounting adapter) WMBRKT20 (wall mount bracket) Rust-Free Alumininum grill
