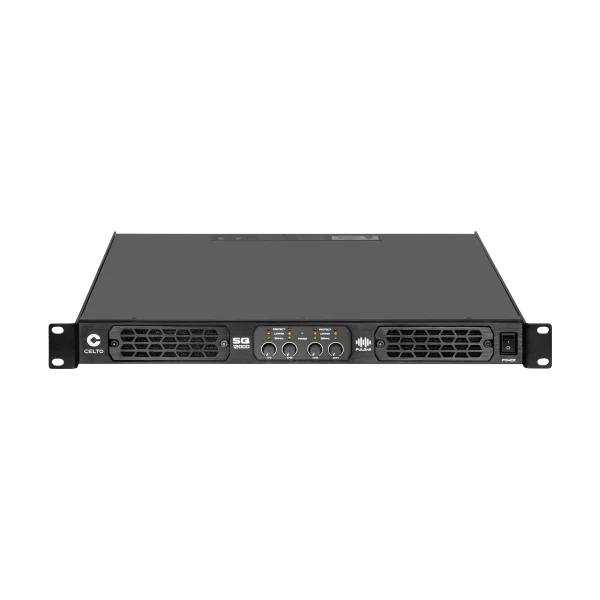

SQ12000

SD-SQ series · Amplifiers

Frequency Response (−1 dB): 10 – 25 000 Hz
Weight Net: 10 kg

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Ultimate quad density—the CELTO SQ12000 unleashes 4× 1800W 8Ω / 4x 3000W 4Ω for the most demanding array drives. When maximum per-channel output in 1U is required, this is the answer. Ultra low depth chassis (421 mm) and only 10kg still accommodates extreme power reserves without compromise. The exclusive Virtual Class-A circuit reaches warmth and precision audiophile tonality.. Same audiophile circuit and protection as series, scaled for extreme duty. NEUTRIK SpeakON outputs ensure secure high-current delivery. For systems that refuse to run out of headroom. The SQ12000 redefines what's possible in compact quad amplification.

Specifications

Channels: 4
RMS Power 8Ω (per ch., EIA 1 kHz 1% THD): 1800W
RMS Power 4Ω (per ch.): 3000W
RMS Power 2Ω (per ch.): 2600W
Bridge 8Ω: 2x 3000W
Bridge 4Ω: 2x 5200W
Frequency Response (−1 dB): 10 – 25 000 Hz
Typical THD: < 0.03% at 1W / < 0.09% at half power
Signal to Noise Ratio (A-weighted): > 108dB
Crosstalk (1 kHz): > 75dB
Slew Rate: > 60 V/µs
Damping Factor (8Ω): > 800 (internal)
Voltage Gain: 34 dB (50 times voltage)
Input Impedance: 20 kΩ balanced
Preamp: Ultra-low noise and distortion circuit with MUSE® Fine Gold capacitors and TrueRMS JFET VCA limiters
Output Stage / Class: Proprietary High-Speed High-Current 4th generation discrete Class D (92% efficiency)
Power Supply: Switch mode with active PFC (Universal AC input from 90 to 260V)
Cooling: Temperature regulated long life brush-less fans, front to back airflow
Power Connector: SEETRONIC PowerCon
Input Connectors: 4x Balanced NEUTRIK XLR
Output Connectors: 4x NEUTRIK SpeakON NL4MP
Dimensions (W×H×D) mm: 482×45×421 (1U)
Weight Net: 10 kg
