Overview

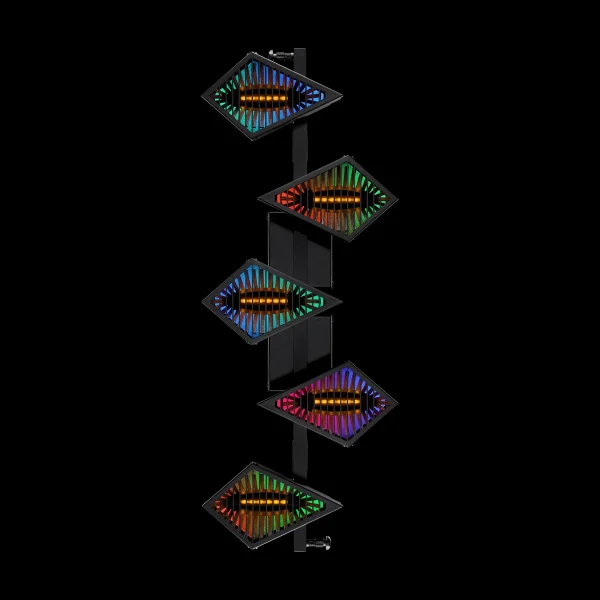

The materialization of the phantom. ZYAVA [ZYA·VA] NOUN, FEMININE | OLD POLISH / EAST SLAVIC FOLKLORE An apparition; a ghostly phenomenon or phantom manifesting suddenly out of darkness and heavy haze. ZYAVA™ pairs the evolved punch of Portman’s golden, true tungsten emulation core, enclosed in the skeletal, rib reflector with the mystic color-blending backlight illumination. Pure decoration. Unforgettable light layering. Once seen, it cannot be unseen.
haloLED™ + surfGLOW™
Five 60 W warm white haloLED™ main sources, 1600–3200 K, with five 32 W surfGLOW™ RGBW glow surfaces.
Quick Joint System 2.0™
Quick Joint System 2.0™ with Auto Orientation™. Base hook and base adapter are in the box.
Specifications
- Dimensions (fixture only)
- 115x44x19,5 cm 45.3×17.3×76.8 in
- Weight (fixture only)
- 10 kg 22 lbs
- Protection rating
- IP20
- Input voltage
- 100-240 V 50/60 Hz
- Max power consumption
- 300 W
- Power connectors
- AC power in/thru: powerCON TRUE1
- Light sources
- Main: haloLED™ · Glow: surfGLOW™
- Power
- 5 × 60W WW · 5 × 32W RGBW
- Beam angle
- 94°
- Colour temperature
- 1600 – 3200 K · RGBW
- Total luminous flux
- TBA
- CRI
- > 80
- Control connectors
- DMX512, RDM, WDMX (optional)
- Control features
- 7 DMX modes (12-97 channels) RDM macros influencer/follower mode Quick Joint System 2.0™ Auto Orientation™
- User interface
- LCD display highlighted touch buttons Colour Feedback System™ – fixture’s auto information status
- Certificates
- CE
- Intelectual protection
- design patent utility patent (pending) trademark
- Warranty
- 24 m
- What’s in the box
- Fixture AC power cord (PowerCon TRUE 1/no AC plug) User manual Base Hook/Base adapter (QJS™ 2.0)
- Additional accessories
- Packing: flight case (2-units) soft case bag (1-unit)
