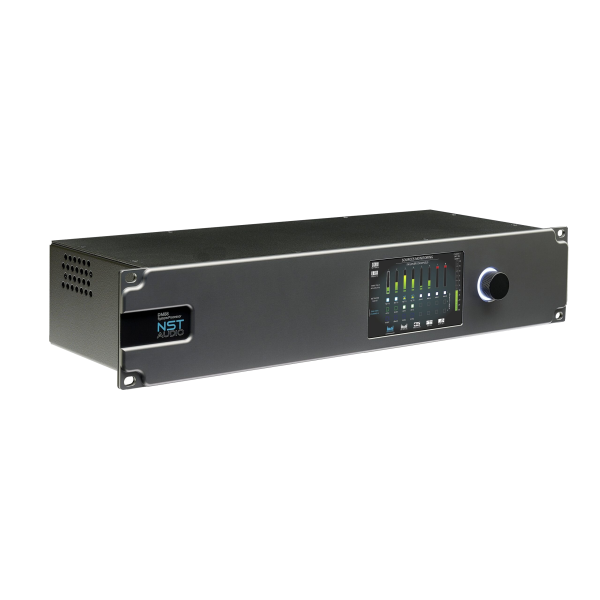

DM88

Processors

Frequency Response: 12Hz – 32kHz +0.2dB
Weight: 3.2kg Net; 4.4kg Shipping

Trade prices are shown to approved accounts. Apply for a trade account.

Overview

Flexible system processor with 16 Dante, 8 analogue and 4x2 AES3 inputs matrixed to 16 processing channels for input or speaker-output processing, with FIR, 48 dB/oct crossovers and a 2-way mode limiter. Has a three-level failover system, direct source conversion, a 5-inch colour touchscreen, 4 GPI and 64 presets; works with VR1, VR2 and V-Remote.

Specifications

Analogue Inputs: 8 Electronically Balanced XLR
Cmrr: >60dB @ 1kHz
Snr: 119dB ‘A’wtd
Maximum Level: >20dBu
Input Impedance: 10k Balanced
Analogue Outputs: 8 Electronically Balanced XLR
Snr: 122dB ‘A’wtd
Maximum Level: >20dBu
Source Impedance: <60R
AES3 Inputs: 4 x 2 Transformer Balanced XLR
AES Input Sample Rates: 8kHz – 192kHz
AES Input s/n Ratio: 139dB
Input Impedance: 110R
AES3 Outputs: 4 x 2 Transformer Balanced XLR
Sample Rate: 96kHz
Source Impedance: 110R
Network Audio: 16 in, 16 out (96kHz); Dante and AES67 compatible; BNC Word Clock Input (auto-selected if valid)
Frequency Response: 12Hz – 32kHz +0.2dB
Dynamic Range: >119dB ‘A’wtd (in-out analogue)
THD+N (+19dB @ 1kHz): 0.00029%
Latency: 0.615mS (in-out analogue, 96kHz)
Power: 90-250VAC, 50-60Hz, 20W
Dims: 88 x 170 x 482mm (3.47 x 6.75 x 19in)
Weight: 3.2kg Net; 4.4kg Shipping
Input Processing Features: Variable High Pass Filter
Input Processing Features: Compressor
Input Processing Features: Multi-Layer Parametric EQ with Behaviour Library
Input Processing Features: 3 Bands Dynamic EQ
Input Processing Features: Delay/Gain/Polarity/Mute
Output Processing Features: Multi-Layer Parametric EQ with Behaviour Library
Output Processing Features: Crossover Filters up to 48dB/Oct
Output Processing Features: FIR Capable · Up to 1024 taps/channel
Output Processing Features: Band Gain, Output Gain, Polarity
Output Processing Features: Delay (up to 1.3s per channel)
Output Processing Features: 2 RMS Limiter Modes (Standard & Passive 2-way)
Output Processing Features: Look Ahead Clip Limiter
Signal Routing Features: Failover System · Three-level automatic “virtual” inputs that select alternate sources if a signal fails
Signal Routing Features: Direct Source Conversion · Any input source can be routed direct to any output bypassing DSP
Signal Routing Features: Mix Matrices · Every input and output processing channel has a 4 source select and mix matrix.
Comms & General Features: 5" colour touchscreen for monitoring, key level and delay/phase/mute control & preset recall
Comms & General Features: 4 GPI ports for configurable external control
Comms & General Features: Up to 64 presets may be stored for offline recall
Comms & General Features: Remote control via 100Mbps Ethernet with integrated 4 Port Switch.
Comms & General Features: Compatible with VR1, VR2 PoE remote control panels and V-Remote iPhone control app.
