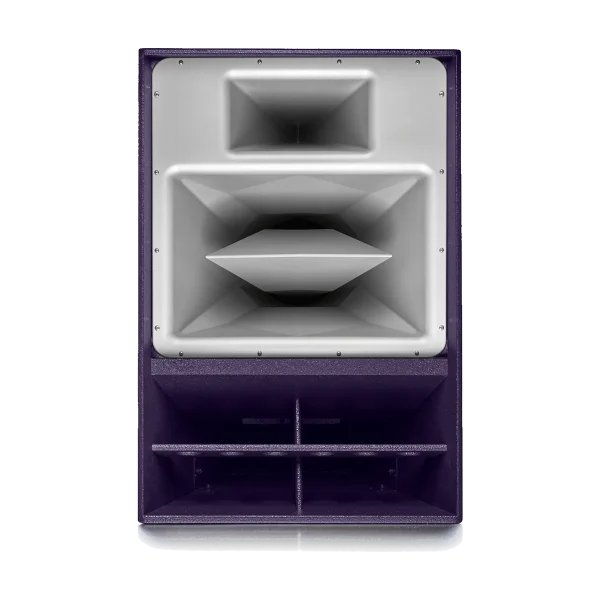

Funktion-One EVO7E

EVO7E

Evolution 7 three way loudspeaker - 15", 10" & 1.4", 40°H x 20°V, triamped

Operating band LF: 85Hz – 220Hz
Sensitivity at 1 m LF: 103dB at 2.8V
Power (AES) LF: 400W
Weight: 61kg (134lbs)

Your choices are added to the quote request.

Request a quote Log in for trade pricing

Trade prices are shown to approved accounts. Apply for a trade account.

Specifications

Driver LF: 15"
Operating band LF: 85Hz – 220Hz
Sensitivity at 1 m LF: 103dB at 2.8V
Power (AES) LF: 400W
Nominal impedance LF: 8Ω
Driver MF: 10"
Operating band MF: 220Hz – 4kHz
Sensitivity at 1 m MF: 112dB at 4.9V
Power (AES) MF: 250W
Nominal impedance MF: 24Ω
Driver HF: 1.4"
Operating band HF: 4kHz – 18kHz
Sensitivity at 1 m HF: 114dB at 5.6V
Power (AES) HF: 75W
Nominal impedance HF: 32Ω
Usable bandwidth (−3 dB): 70Hz – 18kHz
Weight: 61kg (134lbs)
Nominal dispersion: 40° Horizontal x 20° Vertical
Connectors: 2 x Neutrik NL8
